EH Atlas · How PV works

PV system – from sunlight to energy use.

The entire technology is visible at once. Hover over a selected part and click to open a concise explanation in the separate right-hand panel.

Interactive: the green numbers 01–08 are part of the technical diagram. Click zones are transparent and only the relevant part is highlighted on hover.

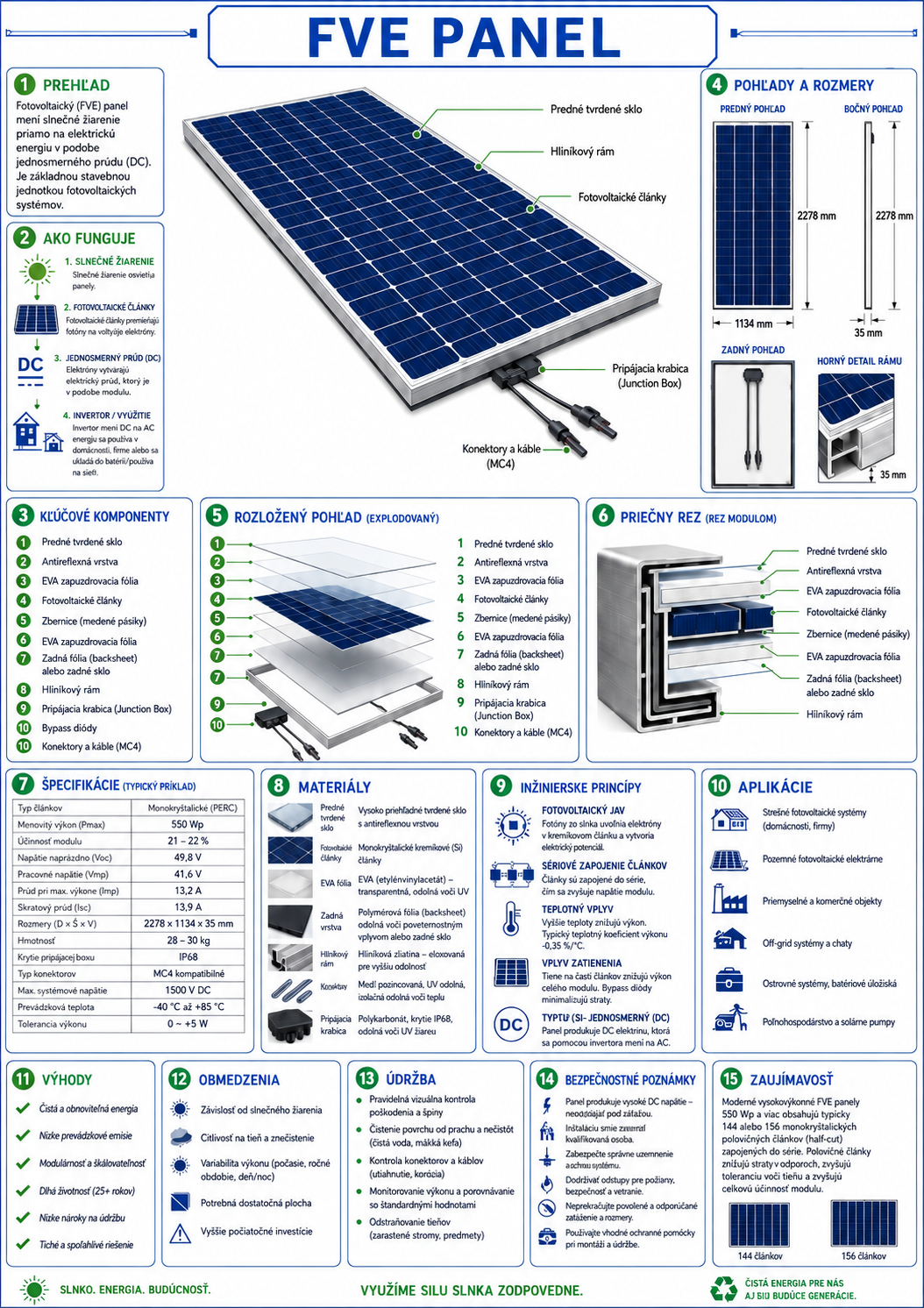

PV system – panels, DC and AC technology, transformer, consumption, BESS and grid
Tip: simply hover over the technology. The panel opens only after a click and never covers the main diagram.
EH Atlas · How BESS works

BESS system – what is inside and how the components work together.

Click directly on the part of the technology you want to explore. As with PV, the main technical view remains clean and the detail opens in a separate right-hand panel.

Controls: click zones are invisible. On hover, the relevant part is gently highlighted; the detail opens only after a click.

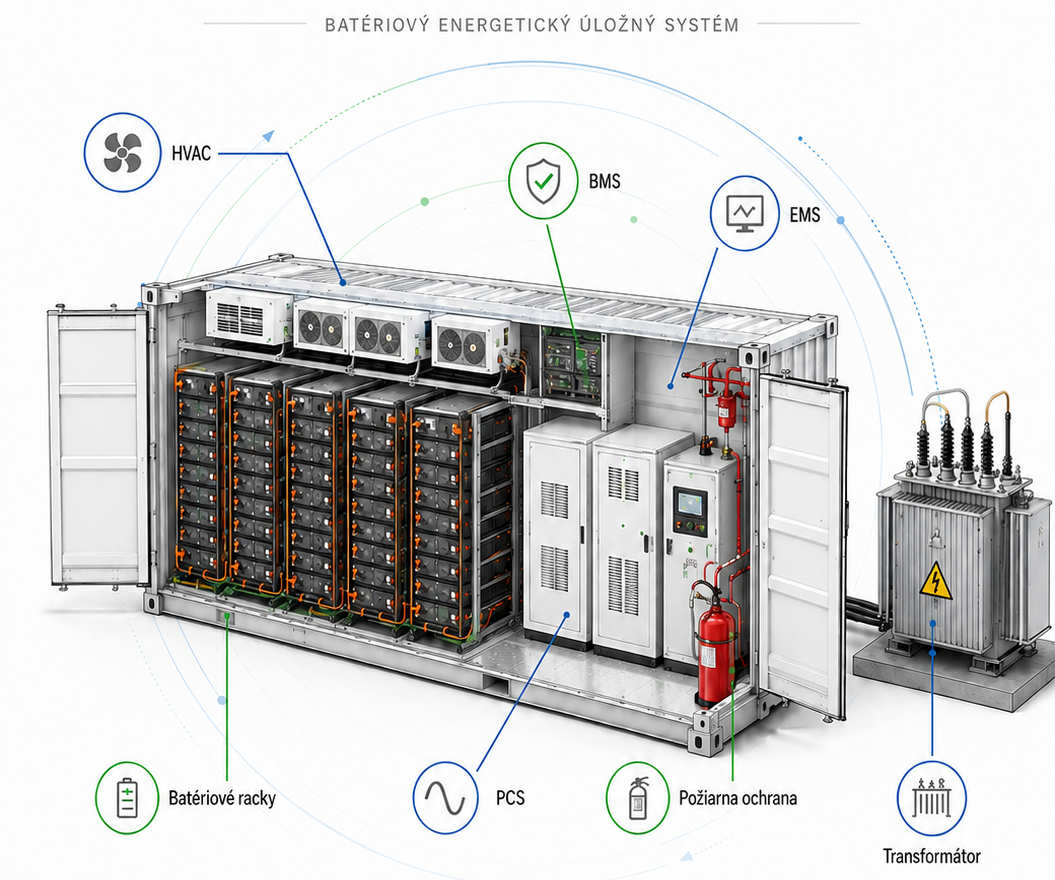

BESS container – technical component overview
Hover over the container and click the component you are interested in.
EH ATLAS | SC-0001 | OPERATING SCENARIO
14:00 · Production hall
420€/MWh

Electricity prices have risen sharply. Production continues.

BESS

Energy storage system.

Production is running
01 / 06
1 mouse-wheel turn = 1 step
The key insight

Energy has the greatest value at the right moment.

BESS stores energy when it is available and supplies it when the company needs it most.

View the first operating scenario
EH Atlas · SC-0002 · Operating scenario

How BESS shaves a demand peak.

When production demand exceeds the selected limit, BESS temporarily supplies the missing power. Production continues while grid demand remains more stable.

Illustrative 24-hour power profile normalised values, not project parameters
Production demand Grid demand BESS contribution
control limit 00:00 06:00 12:00 18:00 23:00 power profile
00:00
EH Atlas · SC-0003 · Operating scenario

What happens when the grid fails.

Comparison of a standard outage with a system designed for backup operation. With the right technical solution, BESS isolates the selected part of the site from the grid and supplies critical loads.

Illustrative outage sequencenormal operation → grid loss → isolation → backup mode
Normal operation
PUBLIC GRIDavailable GRID ISOLATION OPERATION CRITICAL LOAD powered OTHER LOADS powered BESS
14:16
normal operation14:17:00
grid loss14:17:01
isolation14:17:02
backup mode
−45 s
Speed
EH Atlas · SC-0004 · Operating scenario

Buy cheaper. Use at the right time.

BESS can store energy during lower-price hours and use it during higher-price hours. The economic result, however, depends on the price spread, efficiency, degradation and control strategy.

Illustrative daily price profile normalised values, not a market forecast
Energy price Charging Discharging
charging threshold discharging threshold 00:00 06:00 12:00 18:00 23:00
00:00
EH Atlas · SC-0005 · Operating scenario

Excess PV generation does not have to go to waste.

When PV generates more than the business is consuming, BESS can store the surplus and use it later. The result is higher self-consumption and lower dependence on the grid.

Illustrative daily generation and consumption profile normalised values, not a project calculation
PV generation Consumption Grid demand BESS
00:00 06:00 12:00 18:00 23:00
00:00
EH Atlas · SC-0006 · Operating scenario

How to charge a fleet without exceeding the grid connection limit.

When multiple vehicles connect at the same time in the evening, charging can create a sharp increase in demand. BESS can temporarily provide additional power and keep grid demand below the selected limit.

Illustrative evening charging profile normalised values, not a design for specific charging infrastructure
Base load Fleet demand Grid demand
connection limit 18:00 21:00 00:00 03:00 05:00
18:00
EH Atlas · SC-0007 · Operating scenario

How BESS relieves the transformer during a peak.

If short-term site demand exceeds a safely selected transformer loading level, BESS can supply part of the power locally and reduce transformer loading.

Illustrative transformer loading profile normalised values, not a thermal or project calculation
Site demand Transformer loading BESS contribution
control threshold 06:00 10:00 14:00 18:00 22:00
06:00
EH Atlas · SC-0008 · Operating scenario

How BESS helps maintain grid frequency.

When consumption temporarily exceeds generation in the system, frequency falls. When generation exceeds consumption, frequency rises. BESS can change its power very quickly and help reduce the deviation.

Illustrative frequency deviation simplified explanatory model around 50 Hz
Original deviation After regulation BESS contribution
50,00 Hz t₀ t₁ t₂ t₃ t₄
t₀
